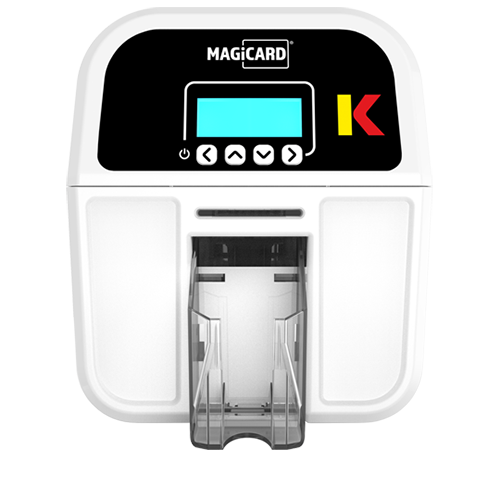

Magicard K
Printer highlights:
High volume, high speed card printer with customisable security watermark and embedded CPU
2-year MagiCover Limited Warranty, terms and conditions apply
Magicard K features
Focused on meeting the needs of customers in the self-service and kiosk markets, the Magicard K incorporates all of Magicard’s direct to card printing expertise in a customisable package which can be configured to suit an infinite range of applications.
Configurable ejection
The ejection speed and angle of the Magicard K is customisable enabling the printer to suit fitment in a wide range of kiosks.
Configurable reject location
Defective cards, such as those which have failed to properly encode, are ejected to a configurable reject location.
Enhanced Security
The Magicard K has the ability to print an anti-fraud HoloKote® watermark on every card. It also has the ability to receive up to four anti-fraud customised HoloKotes® direct to the printer via Magicard’s web tool. And with Digital Shredding(TM), once data has been used in a print job, it is fragmented, rendering irrecoverable, helping to ensure the Magicard K is not a repository for data.
High Quality
The Magicard K has a wide colour spectrum making each print vibrant and colour-rich – perfect for photographs on ID cards and a more accurate depiction of corporate logos and other images. Capable of 600 x 300 dpi resin only to allow for readable text at small font size (≥5 point).
Clix (TM)
Control the Magicard K from the web browser on a phone, tablet or desktop with CLIX. Users can send a test print card, switch to hand-feed mode, set cleaning reminder preferences and be alerted when the dye-film is running low all from a mobile device or computer when the printer is connected to a network.
Media Alert
An alert is triggered on the printer screen via the driver when the number of unprinted cards in the input hopper falls below a level set by the user so they can be replenished.
Magicard K specifications
Standard features
Optional features
Full printer specifications
| Specification | Details |
|---|---|
|
Print technology
|
Direct to Card Printers
|
|
Printer Warranty
|
2 year MagiCover Limited Warranty
Warranty conditions defined on a project-specific basis with hot swap as standard element.
|
|
Print speed (cards per hour)
|
Mono: 620
Colour: 156
|
|
Card Handling
|
Input hopper: 200
Output hopper: 70
Hand-feed
|
|
Printer dimensions
|
Height: 251mm (9.9″)
Width: 210mm (8.3”)
Depth: 386mm (15.2”)
|
|
Printer weight
|
Weight 4.7kg /10.4 lbs.
|
|
Compatability
|
Windows 11,10 (32/64 bit) Mac OS 10.10.x, Mac OS 10.7.x Linux OS Dist
|
|
Connectivity
|
USB 2.0 Type A Ethernet Interface (100-Base TX/ 10-Base-Tc)
|
*Available in North America, EU and other selected territories. Elsewhere a minimum of 1 year limited depot warranty.
Our warranties cover poor workmanship, manufacturing defects and component failure – conditional with use of approved Magicard consumables and observance of correct routine maintenance and frequency.
California Proposition 65 Warning
WARNING: this product exposes chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Magicard K consumables
Magicard consumables can be purchased through our dealer network
300 shot YMCKO film for Plantbased cards
Order Reference: ME300YMCKO/3
100 shot YMCKO film for Plantbased cards
Order Reference: ME100YMCKO/3
200 shot YMCKO film for Plantbased cards
Order Reference: ME200YMCKO/3
250 shot YMCKOK film for Plantbased cards
Order Reference: ME250YMCKOK/3
MK 450 HALF Shot Dye Film, Region 1
Order Reference: MK450YMCKO-HALF/1
MK 300 Shot Dye Film, Region 1
Order Reference: MK300YMCKO/1
MK 250 KOKO HALF Shot Dye Film, Region 1
Order Reference: MK250YMCKOKO-HF/1
MK 250 Shot Dye Film, Region 1
Order Reference: MK250YMCKOK/1
Dye Film Resin Scratch-Off
Order Reference: MA1000K-Scratch
1000 Shot Wax Resin Film
Order Reference: MC1000W-BLACK/3
Dye Film Resin Blue 1000 Shot
Order Reference: MA1000K-Blue
Dye Film Resin Green 1000 Shot
Order Reference: MA1000K-Green
Dye Film Resin Gold 1000 Shot
Order Reference: MA1000K-Gold
Dye Film Resin Silver 1000 Shot
Order Reference: MA1000K-Silver
Dye Film Resin Red 1000 Shot
Order Reference: MA1000K-Red
Dye Film Resin White 1000 Shot
Order Reference: MA1000K-White
Dye Film Resin Black 1000 Shot
Order Reference: MA1000K-Black
MK 600 Shot Dye Film, Region 1
Order Reference: MK600KO/1
Pack of 100 Rewritable card front & PVC back blue
Order Reference: E9323
500 Self Adhesive Cards
Order Reference: M9007-011
CR80 cards - 500 Pack, Plant Based card. Requires ME dye film.
Order Reference: E0001
Box of 500 CR80 Plain White PVC 760µ cards
Order Reference: M9006-793
30 Mil CR80 PVC Cards w/HiCo Mag Stripe and Gold Holopatch - 500 pack
Order Reference: M9006-797
500 HiCo Magnetic Stripe PVC Cards
Order Reference: M9006-794
