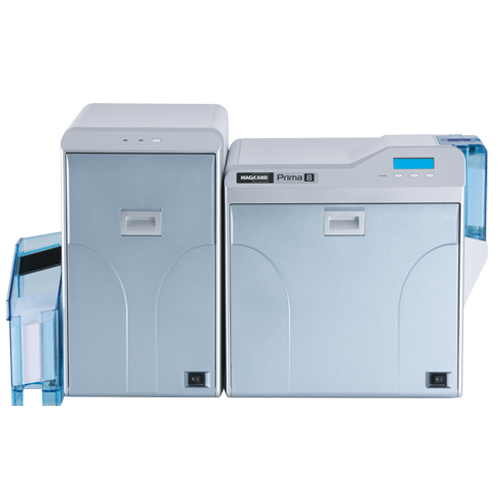

Prima 8 with laminator
Printer highlights:
The in-line laminator option provides additional card durability and security to Prima8
3 Year MagiCoverPlus, terms and conditions apply
Prima 8 with laminator features
Using retransfer technology, the Prima 8 produces photo quality cards, comparable to offset litho printing. The in-line laminator option provides additional card durability and security.
In-line lamination for extra durability and security
The Magicard Prima 8 is available with in-line lamination. This adds an additional overlay to protect the card from wear and fading of the image, mainly for cards which are used frequently or in outdoor environments. Laminates can be overlays or patch. Patch provides a thick protection layer on the card but is not quite edge-to-edge. Overlay provides a thinner protection layer, but is fully edge-to-edge.
Both types of laminates can also be supplied with a customisable holographic design. This is particularly suited to very high volume secure card printing. For lower volume secure printing use Custom HoloKote® on the Ultima or the Rio Pro 360.
High volume photo quality
The Magicard Prima 8 provides a reliable, robust solution for instant issuance and lamination in a compact package. Using a retransfer printing process, images are first printed onto a thin film then heat transferred onto the card surface. This produces a high-resolution glossy image, printed right over the edge of the card.
Security
A special dye sublimation Ultra Violet (UV) ribbon can be used with the Prima 8 for the printing of invisible photographs, logos, text or symbols when issuing high-security cards. The UV ink is not detectable to the naked eye, but is only visible with the use of a UV light source. This special YMCK-UV ribbon offers an affordable yet still highly secure feature to decrease susceptibility to counterfeiting.
Electronic security
The Magicard Prima 8 can be equipped with a range of card encoding devices to write secure electronic data to cards at the point of issuance. Smart card encoding options include contact chip, MIFARE®, DESFire® and iClass®. Specialist high-security encoders, such as EMV accredited devices, can also be fitted for the in-line personalisation of payment cards. The Prima 8 can also be supplied with a magnetic stripe encoder built-in.
Prima 8 with laminator specifications
Standard features
Optional features
Full printer specifications
| Specification | Details |
|---|---|
|
Print technology
|
Reverse Transfer
|
|
Printer Warranty
|
3yearUltraCoverPlus
Including “no quibble” printhead replacement and loan printer /hot swap. Optional 1-year extension.
|
|
Print speed (cards per hour)
|
Mono: 100
Colour: 100
|
|
Card Handling
|
Input hopper: 100
Output hopper: 100
|
|
Printer dimensions
|
Height:
Width:
Depth:
|
|
Printer weight
|
Weight Printer 15.5 Kg / 34 lbs, Laminator 8.5Kg / 18.7 lbs
|
|
Compatability
|
Windows 11,10 (32/64 bit)
|
|
Connectivity
|
USB 2.0 Type A Ethernet Interface (100-Base TX/ 10-Base-Tc)
|
*Available in North America, EU and other selected territories. Elsewhere a minimum of 1 year limited depot warranty.
Our warranties cover poor workmanship, manufacturing defects and component failure – conditional with use of approved Magicard consumables and observance of correct routine maintenance and frequency.
California Proposition 65 Warning
WARNING: this product exposes chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Prima 8 with laminator consumables
Magicard consumables can be purchased through our dealer network
Colour dye film, black on reverse (YMCKK)
Order Reference: PRIMA833
Colour dye film, with UV panel (YMCK-UV)
Order Reference: PRIMA834
Set of 1 x YMCK ink ribbon, and 1 x retransfer ribbon.
Order Reference: PRIMA831
Colour dye film, with peel-off panel (YMCK-PO)
Order Reference: PRIMA835
Prima 4 & Prima 8 Re-Transfer Film -1000
Order Reference: PRIMA436
