Prima 4 with laminator

Using retransfer technology, the Prima 4 produces photo quality cards, comparable to offset litho printing.
The in-line laminator option provides additional card durability and security.

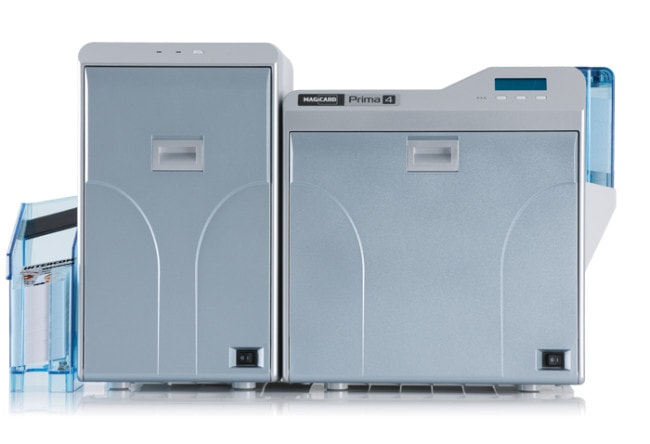

Prima 4 retransfer card printer with laminator

Card printing options:

Card encoding options:

Printer model number:

laminated national id cards

In-line lamination for extra durability and security

The Magicard Prima 4 is available with in-line lamination. This adds an additional overlay to protect the card from wear and fading of the image, mainly for cards which are used frequently or in outdoor environments. Laminates can be overlays or patch. Patch provides a thick protection layer on the card but is not quite edge-to-edge. Overlay provides a thinner protection layer, but is fully edge-to-edge.

Both types of laminates can also be supplied with a customisable holographic design. This is particularly suited to very high volume secure card printing. For lower volume secure printing use Custom HoloKote® on the Helix or the Rio Pro.


laminated smart id cards

High-volume photo quality printing

FIPS 201 certified for the personalization of US Government credentials, the Magicard Prima 4 provides a reliable, robust solution for instant issuance in a compact package. Using a retransfer printing process, images are first printed onto a thin film then heat transferred onto the card surface. This produces a high resolution glossy image, printed right over the edge of the card.


laminated driver licences

Customisable stealth security

A special dye sublimation Ultra Violet (UV) ribbon can be used with the Prima 4 for the printing of invisible photographs, logos, text or symbols when issuing high security cards. The UV ink is not detectable to the naked eye, but is only visible with the use of a UV light source. This special YMCK-UV ribbon offers an affordable yet still highly secure feature to decrease susceptibility to counterfeiting.


Print payment smart cards

Trusted electronic security

The Magicard Prima 4 can be equipped with a range of card encoding devices to write secure electronic data to cards at the point of issuance. Smart card encoding options include contact chip, MIFARE®, DESFire® and iClass®. Specialist high-security encoders, such as EMV accredited devices, can also be fitted for the inline personalisation of payment cards. The Prima 4 can also be supplied with a magnetic stripe encoder built-in.


3 years UCP icon

Backed by the industry’s best 3 year warranty*

Magicard Prima 4 with UltraCoverPlus – our promise to keep you printing.

The reliability of our well-established print engine enables us to offer you a comprehensive 3 year warranty with full telephone and online support.
This includes a free replacement for any printhead damaged over the lifetime of the warranty. In the unlikely event of a field failure, we will send you a replacement loan printer to you whilst we repair your existing device.

*Available in the EU, North America and other selected territories.
Elsewhere 1 year minimum limited depot warranty.

Prima 4 specifications



  • Printing performance

    >100 cards per hour


  • Card capacity

    100 card input
    100 card output

  • Warranty*

    3 Year
    UltraCoverPlus

  • Visual Security

    Standard and custom
    holographic overlays

  • Operating systems

    Windows compatible




PrinterDetailsProduct code
Print technology300dpi retransfer (600dpi option on request)
Feed systemHopper fed
Card capacity100 card input hopper, 100 card output hopper
Single-sided printingPrima 401
Double-sided printingPrima 402
SecurityElectronic lock for hopper and door, security ribbon erase
Encoding optionsDetails
Magnetic stripeISO 7811 – tracks 1, 2 and 3
Smart cardContact chip, MIFARE®, DESFire® and iClass®. Other encoders available, see encoder compatibility matrix
Connectivity and driversDetails
Operating systemsWindows XP, Vista, 7, 8.1, 10 (32 and 64bit), Windows server 2003 R2 SP2, 2008 and 2012
USB connectionUSB rev1.1 and USB 2.0
Ethernet connectionSecure IPSEC Ethernet fitted as standard
WarrantyDetails
3 year UltraCoverPlusTelephone support, full printhead coverage and loaner service.
*Available in North America, EU and other selected territories. Elsewhere a minimum of 1 year limited depot warranty.
Visual securityDetailsProduct code
Standard holographic laminatesThin, 0.5 mil and 1 mil laminates available
Custom holographic laminatesThin, 0.5 mil and 1 mil laminates available
UV printingYMCK-UV 750 images (full colour and UV panel)Prima 434
Print speedDetails
ColourOver 100 cards per hour
Accepted cardsDetails
Card sizesISO CR80 85.6mm x 54mm / 3.375″ x 2.125″
ISO CR79 83.9mm x 51mm / 3.303″ x 2.051″
Card typesPVC, ABS, PET, PVH, and polycarbonate ISO blank cards, HiCo magnetic stripe and smart cards
Card thickness0.25mm to 1.0mm / 0.010” to 0.040”
Physical specificationsDetails
Printer weight15.5 Kg / 34 lbs
Laminator weight8.5Kg / 18.7 lbs
Printer sizeHeight: 320 mm / 12.6″ Width: 343 mm / 13.5″ Length: 330 mm / 13″
Laminator sizeHeight: 360 mm / 14.1″ Width: 210 mm / 8.3″ Length: 330 mm / 13.0″
Environmental operating range15°C to 30°C (59°F to 86°F) ; 35% to 70% non-condensing
Printer variantsDetailsProduct code
Laminator UnoSingle-sided laminationPrima 451
Laminator DuoDouble-sided laminationPrima 452

Prima 4 solutions

  • Corporate

    The Prima 4’s superior print quality, combined with its robust print engine and encoding options make it a trusted choice for medium to large enterprises for the localised issuance of multi-application employee cards.

    Read moreIndustry

  • Physical access

    A Prima 4 fitted with an in-line smart card encoder can write physical access data to a smart card at the point of issuance.

    Read moreApplication

  • Government

    Retransfer printing is widely used by federal and local governments for the localised issuance of secure citizen ID cards, such as driving licences, voter registration cards and even National ID cards.

    Read moreIndustry

  • Logical access

    A Prima 4 fitted with an in-line smart card encoder can write logical access data to a smart card at the point of issuance.

    Read moreApplication

  • Facilities

    Critical facilities require robust and secure ID cards. The Prima 4, fitted with an in-line laminator can print high quality, durable cards that last up to ten years.

    Read moreIndustry

  • Healthcare

    Multi-application health cards, including patient records, insurance details and critical information such as blood group and medications can be issued using a Prima 4 fitted with an in-line smart card encoder.

    Read moreIndustry

Prima 4 consumables

 Product codeDetailsCapacity
Prima 4 retransfer film Prima 431YMCK colour dye film and retransfer film sets (x5 sets)1000 images per set
Prima 433YMCKK colour dye film black panel on reverse750 images
Prima 434YMCK-UV colour dye film with UV panel750 images
Prima 436Retransfer film1000 images
Prima 4 patch laminate film Prima 462Clear patch laminate 0.6mil600 patches
Prima 463Clear patch laminate 0.6mil with chip cutout600 patches
Prima 464Clear patch laminate 1.0mil600 patches
Prima 465Clear patch laminate 1.0mil with chip cutout600 patches
Prima 467-patchCustom design holographic patch 0.6mil600 patches
Prima 466Clear OVD film1000 overlays
Prima 468Set up charge for custom overlay film/patch laminate
Prima 461OVD ‘snowflake’ design film1000 overlays
Cleaning kits
UltraSecure cards 125 KHz Proximity
SMA Proximity
MIFARE Classic®
MIFARE® DESFire® EV1
Contact chip
Multi-technology
Blank cards M9006-793Premium blank white cards – CR80
M9006-794Blank white cards with magnetic stripe – CR80

Compare printers

PrinterCards per hourInput / outputWarrantyVisual securitySystem requirements
Direct to card printers
Rio Pro150+100 / 703 year UltraCoverPlusCustom and standardWindows / Mac OS X
Enduro3E100+100 / 303 year limitedStandardWindows / Mac OS X
Pronto1 card per 35sHand-fed2 year limitedStandardWindows / Mac OS X
Reverse transfer printers
Helix125+200 / 2003 year UltraCoverPlusCustom and standardWindows / Mac OS X
Prima 4100+100 / 1003 year UltraCoverPlusUVWindows
Prima 4 with laminator100+100 / 1003 year UltraCoverPlusUVWindows
